Core value of V2202 AC single-phase household voltage stabilizer
The core value of AC single-phase household voltage stabilizer is to protect electrical equipment through stable voltage, improve electricity safety and energy efficiency, extend equipment life and adapt to diverse household electricity needs. The following is a specific analysis of its core value:
1. Voltage stability and equipment protection
- Automatic adjustment function: Real-time monitoring of input voltage through components such as servo motors, control circuits and compensation transformers, dynamic adjustment of carbon brush position or compensation voltage, to ensure that the output voltage is stable at around 220V, to avoid damage to sensitive electrical appliances (such as refrigerators, air conditioners, computers, etc.) due to voltage fluctuations (such as high voltage or undervoltage).
- Protection mechanism: It has multiple protection functions such as overvoltage, undervoltage, overload, and lightning protection, and automatically cuts off the power supply when the voltage is abnormal to prevent equipment damage.
2. Extend the service life of electrical appliances
- Unstable voltage will cause additional pressure on the internal components of electrical appliances and accelerate aging. The voltage stabilizer significantly extends the life of electrical appliances by maintaining a constant voltage, reducing frequent start-stop and current shocks.
3. Energy efficiency optimization and cost savings
- Reduce power loss: Through efficient voltage stabilization technology (such as compensatory design), reduce ineffective energy consumption caused by voltage fluctuations and improve overall power efficiency.
- Long-term economy: Although the initial investment is high, it can avoid the cost of equipment maintenance or replacement caused by voltage problems, which is more economical in the long run.
4. Adaptability and wide applicability
- Wide input range: Supports different voltage fluctuation environments (such as unstable rural power grids or urban power consumption peaks), and the input range usually covers 140V-270V, with strong adaptability.
- Diverse load compatibility: It can match resistive (such as light bulbs) and inductive loads (such as motor-driven air conditioners and refrigerators) in the home, and respond to the starting current impact by reserving power margin (recommended 3 times the rated power).
AC single-phase household voltage stabilizer is not only a voltage "regulator", but also a "guardian" of household electricity. Its core value is reflected in technical reliability, economy and future compatibility. When purchasing, users should consider power requirements, accuracy (preferably within ±2%) and environmental characteristics to select the appropriate type (such as contact or non-contact).
V2202 Single Phase Voltage Regulator Instruction

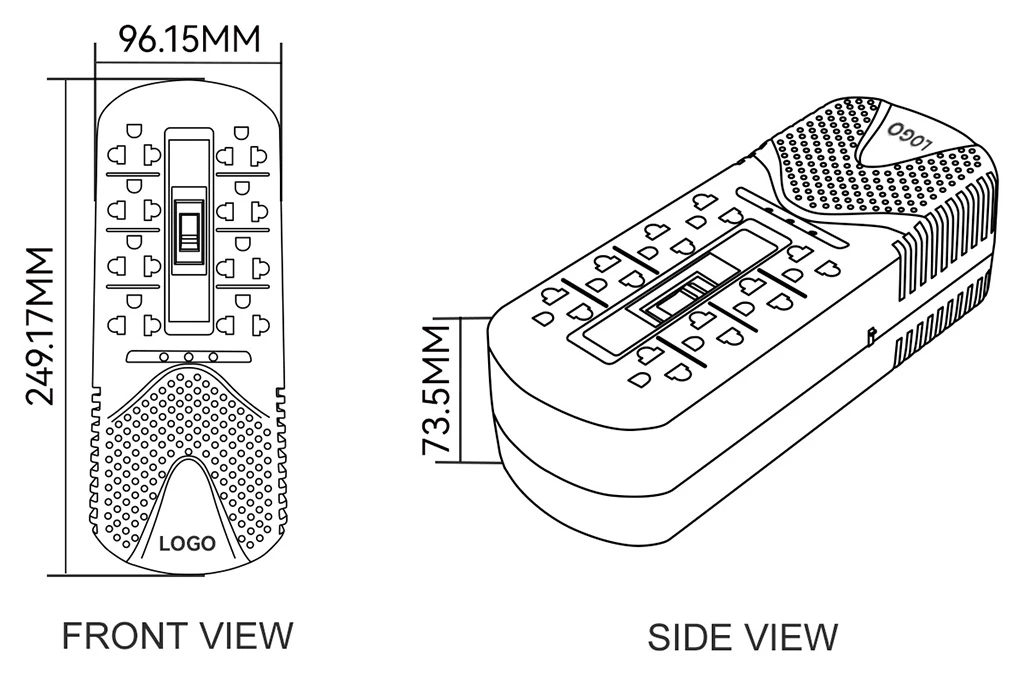

V2202 Single Phase Voltage Regulator Dimension
V2202 Single Phase Voltage Regulator Parameter
|
MODEL
|
V2202
|
|
CAPACITY
|
600VA/300W
|
|
900VA/450W
|
|
1200VA/600W
|
|
INPUT
|
|
Voltage
|
120VAC
|
|
Voltage Range
|
80-145Vac
|
|
Frequency
|
50Hz/60Hz(autosensin)
|
|
Joules
|
94J(14D391)
|
|
AC plug type
|
NEMA 5-15P
|
|
Output
|
|
Steps of Regulation
|
3(2-step Boost & 1-step Buck)
|
|
Output Voltage
|
120VAC±10%
|
|
Max spike current
|
3A\4A\5A
|
|
Output Receptacles
|
Nema5-15R or Universal Nema: 8pcs AVR regulated plus surge protected
|
|
Protection
|
Overload/short circuit: manual reset circuit switch
|
|
Over-temperature protection: thermal switch
|
|
Surge protection: 94 Joules
|
|
2route 4 holes stable voltage output
|
|
Data line protection: RJ-45
|
|
adjustable delay range
|
2S-10S-30S
|
|

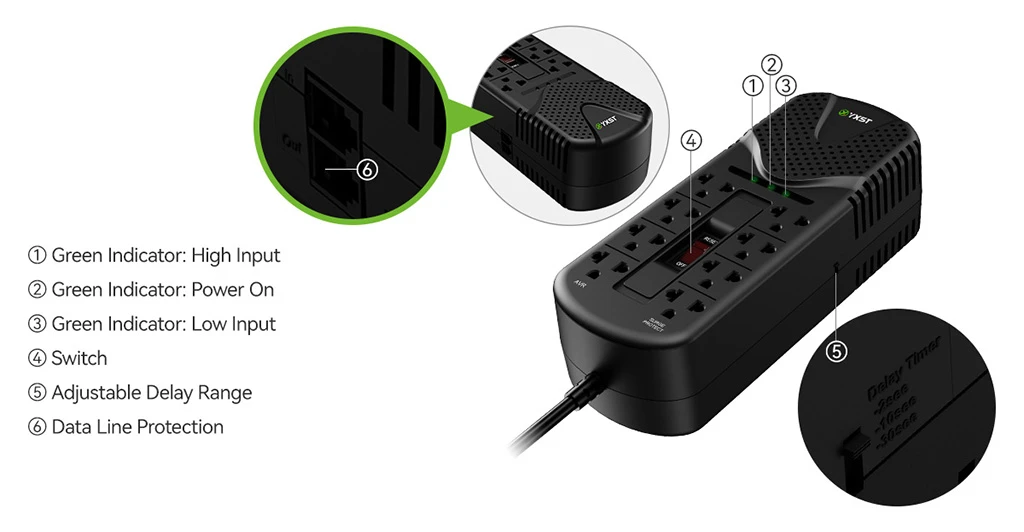

STATUS INDICATORS
|
|
High Input
|
Green
|
|
Power On
|
Green
|
|
Low Input
|
Green
|
|
ENVIRONMENT
|
|
Humidity
|
0-95%(Non-condensing)
|
|
Noise Level
|
Less than 40dB at 1M
|
V2202 Single Phase Voltage Regulator Package Info
|
Capacity
|
Carton
|
Quantity
|
G.W
|
Single Pack
|
|
300W
|
57.5*21.5*25.5CM
|
12PCS
|
11.5KGS
|
Color Box
|
