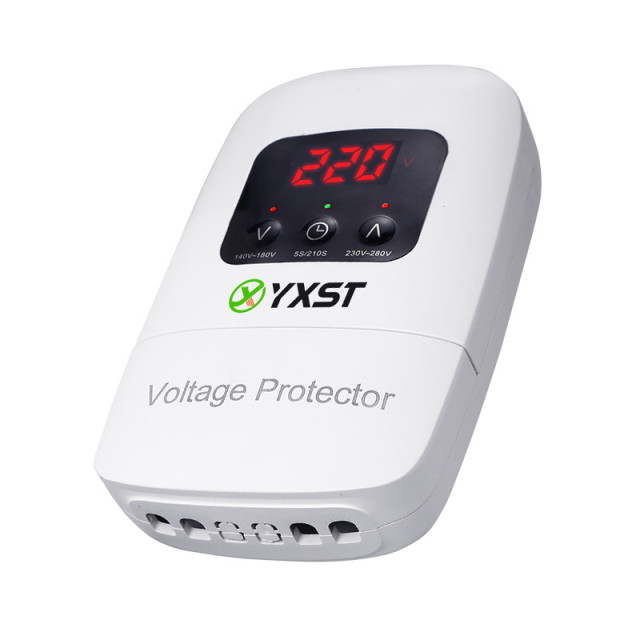

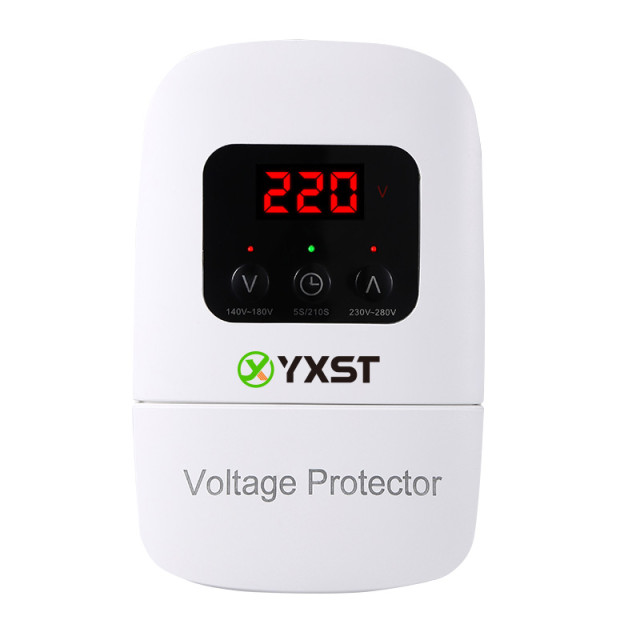

Automatic voltage protection for air conditioner 2124 uses high quality wires to connect directly to the power source, ensuring a stable power pipeline.
Output Capacity：40A , 8800W
Operating Voltage:220V AC
Connect By：Direct Wiring
Single Pack:Color Box
2124 220V Air conditioner automatic voltage protection By using direct wiring, installation simplifies the connection process, without the need for additional adapters or complex configuration. The wires are securely connected to the corresponding terminals on the voltage protector.
| Model No. | 2124 |
|
Operating Voltage |
220V AC |
|
Under Voltage Cut-off |
165V(140V~180V adjustable) |
|
Over Voltage Cut-off |
260V(230V~280V adjustable) |
| Delay Time for Reconnection | 5s/210s |
|
Output Capacity |
40 Amps , 8800 Watts |
| Connect By | Direct Wiring |
| CARTON | Q'TY | G.W | SINGLE PACK |
| 53.5*33.5*23.5cm | 50PCS | 14.5KGS | Color Box |
After installation, the 2124automatic voltage protection continuously monitors the voltage supply and automatically cuts off the air conditioner power supply when the voltage fluctuates (overvoltage and undervoltage), thus protecting the equipment from potential damage.
