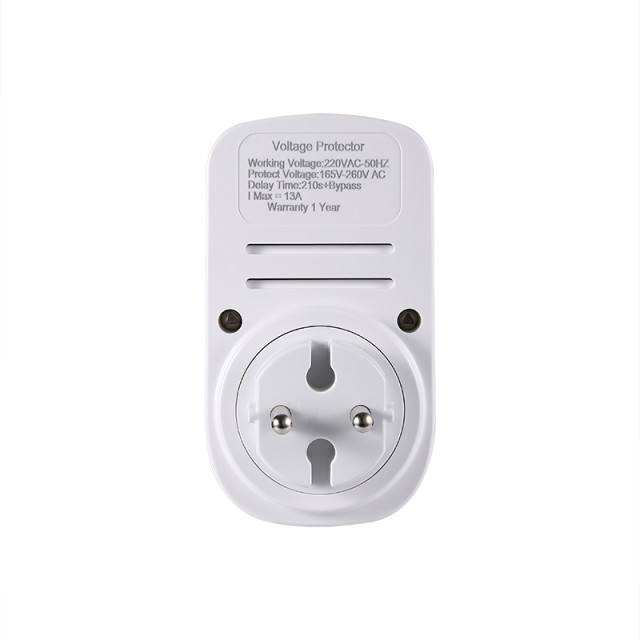

15 Amps 3300 Watts Voltage Protector 220VAC K01EUD

15 Amps 3300 Watts Voltage Protector 220VAC K01EUD Installation Steps:

Preparation:
▷ Make sure you have a suitable 15 amp 3300 watt voltage protector designed for 220v AC power.
▷ Check the appearance of the protector to make sure there is no damage or defects.
▷ Read the product manual

Choose an installation location:
▷ Choose a dry, ventilated place away from flammable and explosive items for installation.
▷ Make sure the installation location is convenient for subsequent maintenance and operation.

Check the power socket:
▷ Confirm that the voltage and current specifications of the power socket match the protector (220v AC, 15 amps).
▷ If the socket does not meet the specifications, do not attempt to install it, but seek help from a professional electrician.

Plug-in installation:
▷ Align the protector's plug with the power socket, making sure the polarity of the plug and socket match (usually, the live wire (L) and neutral wire (N) of the plug should be aligned with the corresponding holes of the socket).
▷ Gently push the plug into the socket until it is fully inserted and fixed.
▷ Plug the household appliance into the 15 Amps 3300 Watts Voltage Protector.

Inspection and testing:
▷ After installation, carefully check all connections and fixing points to ensure that there are no omissions or errors.

▷ Turn on the power and perform a functional test according to the operating instructions of the protector to ensure that the protector can work properly and protect the connected equipment from voltage abnormalities.

15 Amps 3300 Watts Voltage Protector 220VAC K01EUD Parameter

Model No.	K01EUD
Brand Name	YXST
Operating Voltage	220VAC
Operating Frequency	50 Hz-60 Hz
Over Voltage Cut-off	260V(230V-280V adjustable)
Under Voltage Cut-off	165V(140V~180V adjustable)
Delay Time for Reconnection	5s/180s
Output Capacity	15 Amps , 3300 Watts
Standard Package	Blister
Warranty	1 Year

15 Amps 3300 Watts Voltage Protector 220VAC K01EUD Package Info

Carton	Q'TY	G.W	Single Pack
47*41*46CM	100PCS	16KGS	Blister
