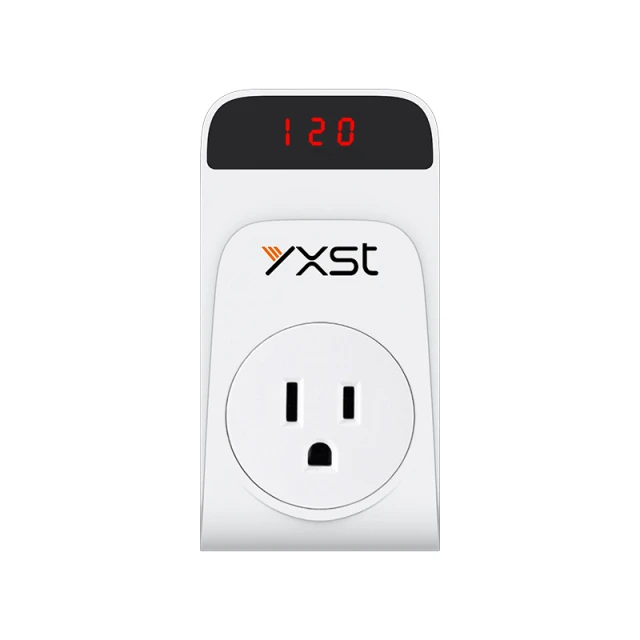

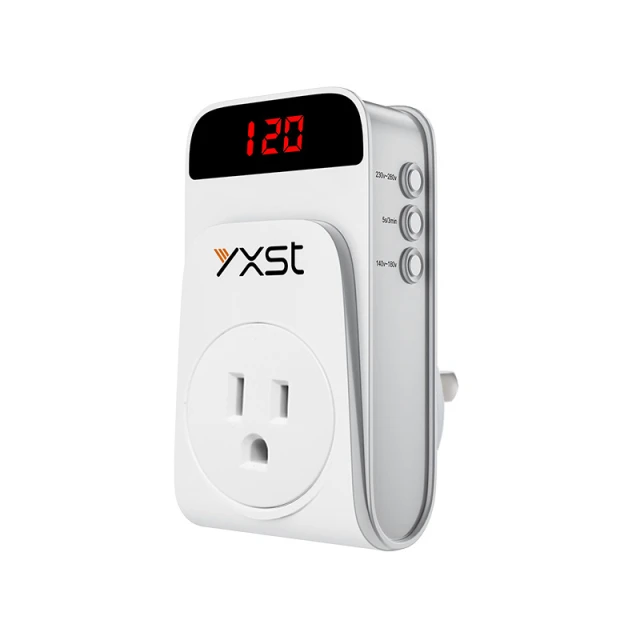

The Yixing K15USD-120 automatic voltage protector can ensure that the TV equipment can still obtain a stable and safe voltage supply in the case of voltage fluctuations or instability. This is crucial for protecting the electronic components inside the TV, extending the service life of the equipment, and ensuring the normal operation of the TV equipment.
|

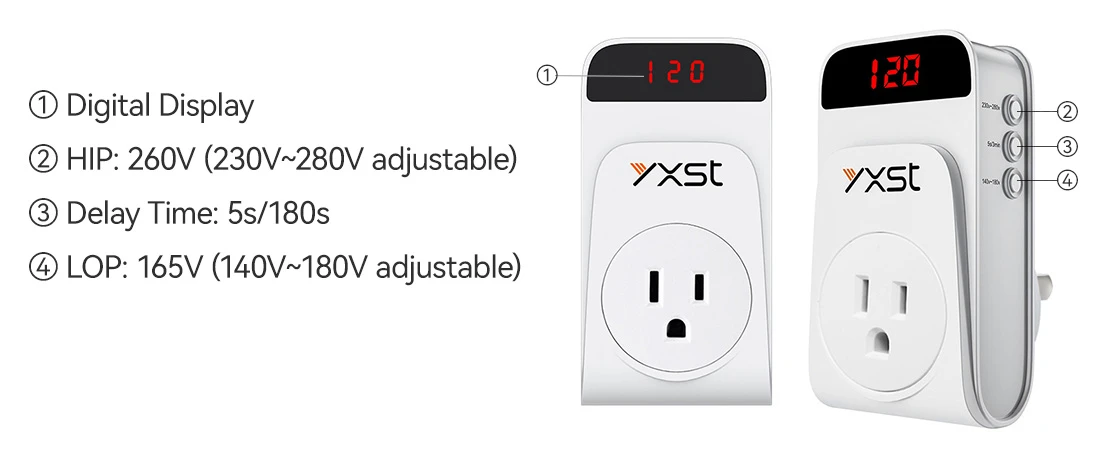

Model
|
K15USD-120
|
|
Operating Voltage
|
120V AC
|
|
Operating Frequency
|
50 Hz-60 Hz
|
|
Under Voltage Cut-off
|
90V (80V~105V adjustable）
|
|
Over Voltage Cut-off
|
140V （125V~150V adjustable）
|
|
Delay Time
|
5s/210s
|
|
Output Capacity
|
15A ,1800W
|
|
Packing
|
Double Blister/ Color Box
|
|
Warranty
|
1 Year
|
Product functions and performance
1. Voltage protection range
-Intelligent dual threshold protection*
-Undervoltage protection: When the voltage is lower than 80V~105V (customizable range), the power is automatically cut off to prevent low voltage from damaging electrical components.
-Overvoltage protection: When the voltage exceeds 125V~150V (customizable range), the power is immediately cut off to prevent high voltage from burning the equipment.
-More adaptable: Supports customized protection thresholds according to regional voltage fluctuations (such as unstable power grid areas) to accurately match user needs.
2. Delayed start function
-Safety buffer design
-5 seconds fast mode: Short delay is suitable for daily restarts to reduce waiting time.
-210 seconds protection mode: Long delay completely releases residual current to avoid instantaneous voltage shocks from damaging the circuits of precision equipment such as LED TVs.
3. Rated current and load capacity
-15A high load: supports a maximum current of 15A and a power of 1800W (under 120V voltage), which can provide stable protection for multiple home appliances such as LED TVs and refrigerators at the same time.
Safety and certification
1. International safety certification
-Authoritative certification guarantee: Passed CE certification (EU safety standards) and ISO 9001 quality management system certification to ensure that the product meets global safety and performance requirements.
2. Materials and flame retardant performance
-Fire safety guarantee: The shell is made of flame-retardant PC material, which is resistant to high temperatures and effectively reduces the risk of fire caused by short circuits.
Compatibility and applicability
1. Multi-device compatibility

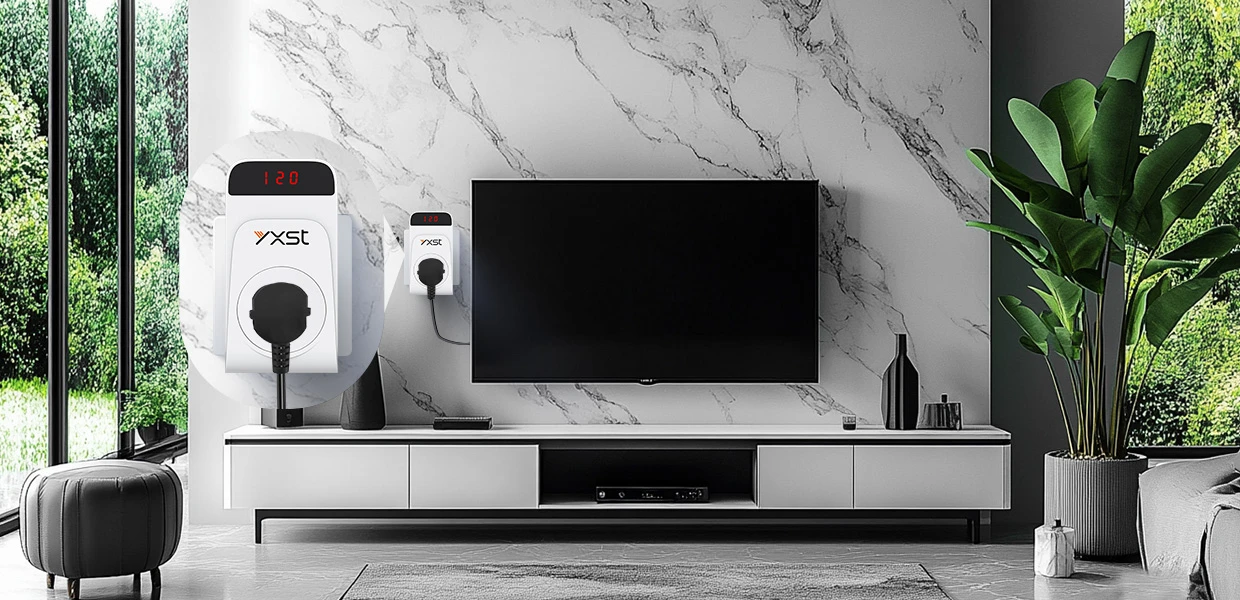

-Widely applicable scenarios: Optimized for LED TV, compatible with common household appliances such as microwave ovens, washing machines, TVs, refrigerators, and household freezers, meeting the power protection needs of all household scenarios.
2. Convenient installation
-Plug and play design: No professional tools or electrician assistance are required, users can complete the plug-in installation by themselves, and quickly connect to the circuit in 30 seconds.
After-sales guarantee
-1-year warranty service: Provide a 1-year warranty for the whole machine, covering the repair and replacement of non-human damage, fast after-sales response, and more peace of mind.
Summary of core selling points
1. Accurate voltage protection: dual-threshold power-off mechanism + customized options, adapted to different power grid environments around the world.
2. High load compatibility: 15A current supports the simultaneous use of multiple devices, covering all household appliances.
3. Safety certification endorsement: CE + ISO 9001 dual certification, flame retardant materials build a solid safety line.
4. Minimalist user experience: plug-in installation + intelligent delayed start, taking into account both safety and convenience.
