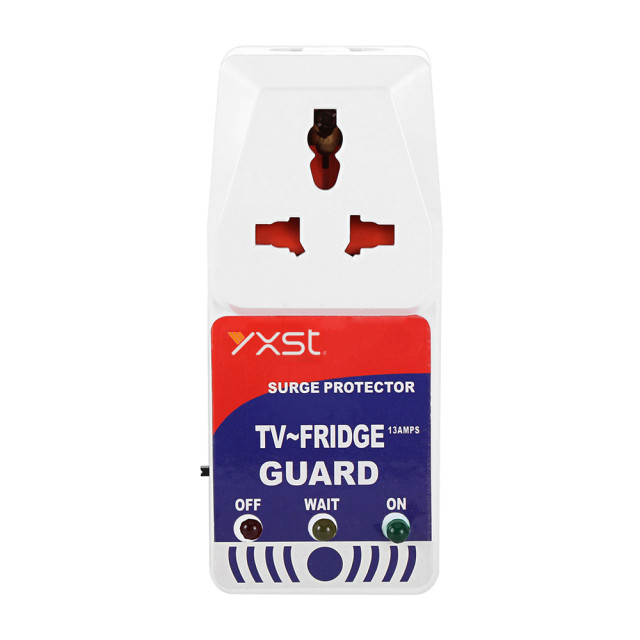

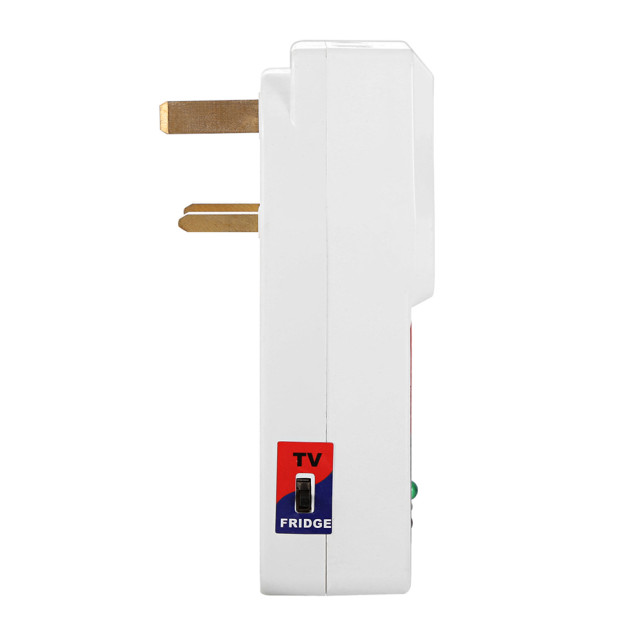

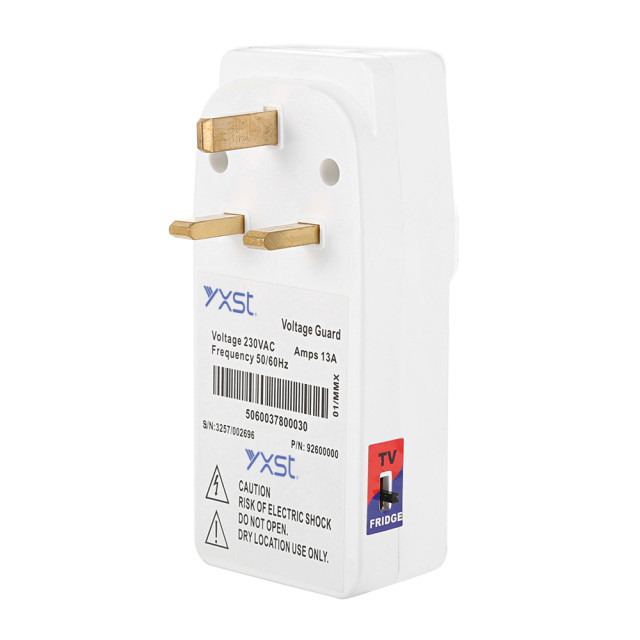

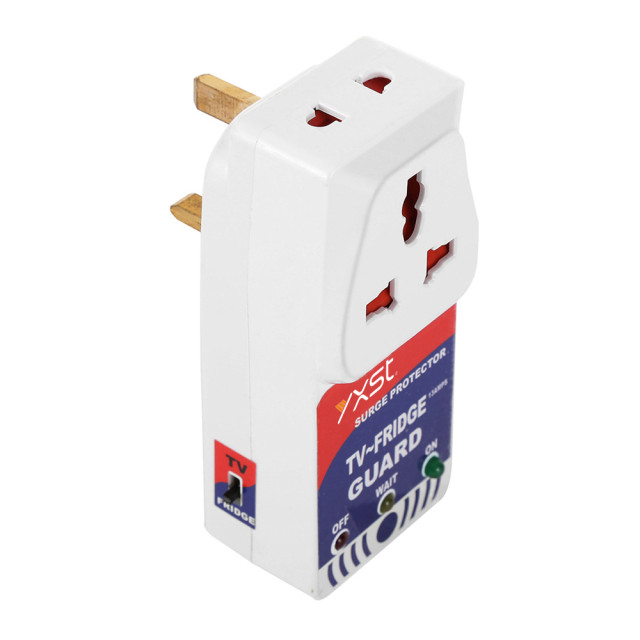

13A Fridge guard for electronics appliances 1517 is installed between an appliance (usually a refrigerator or freezer) and the power supply. It continuously monitors the incoming voltage.
When the voltage is outside the acceptable range (too high or too low), the device disconnects the power supply to the appliance. This helps protect sensitive electronics, motors, and compressors from damage caused by electrical anomalies.
Fridge guard voltage protector can also provide voltage protection, preventing sudden voltage spikes (for example, due to lightning strikes or grid switching) from damaging sensitive internal components in electronic equipment.
| Model No. | 1517 |
| Brand Name | YXST |
|
Operating Voltage |
220VAC |
|
Operating Frequency |
50 Hz-60 Hz |
|
Over Voltage Cut-off |
255VAC (could be customized) |
|
Under Voltage Cut-off |
165VAC (could be customized) |
| Delay Time for Reconnection | 5s/210s |
|
Output Capacity |
13 Amps , 2860 Watts |
| Standard Package |
Double Blister |
| Warranty | 1 Year |
Refrigerators are sensitive to power fluctuations, and voltage spikes or drops can damage the compressor or other critical components.
Refrigerator protectors protect against overvoltage and undervoltage conditions:
Overvoltage protection: If the voltage supplied exceeds a safe threshold (usually 260V or higher), the protector disconnects the appliance to prevent electrical damage.
Undervoltage protection: If the voltage drops too low (usually below 170V), the protector disconnects the appliance to avoid poor performance or potential damage to the motor and compressor.
1517 are equipped with LED status indicators to show the operating status of the protector, such as whether the voltage is within the safe range, whether the appliance is protected, or if there is a problem with the voltage.
Refrigerator protectors usually meet safety standards such as CE or UL certification, ensuring that they meet strict safety guidelines and provide reliable protection for appliances.
